GOM develops and produces software and systems for 3D coordinate measuring technology and 3D testing. With more than 60 sites and 1,000 metrology specialists worldwide, GOM guarantees professional support and service; from training courses to on-site assistance and application based workshops, GOM is with you every step of the way.
Today optical 3D metrology is providing an alternative approach to traditional dimensional inspection tools, improving the product quality and manufacturing processes in automotive, aerospace and consumer goods industries. With no limits on component size, rapid complete measurements enable parts to be thoroughly checked and fast, accurate, GOM scans are now an established way of reducing product development times and ensuring highest quality components.

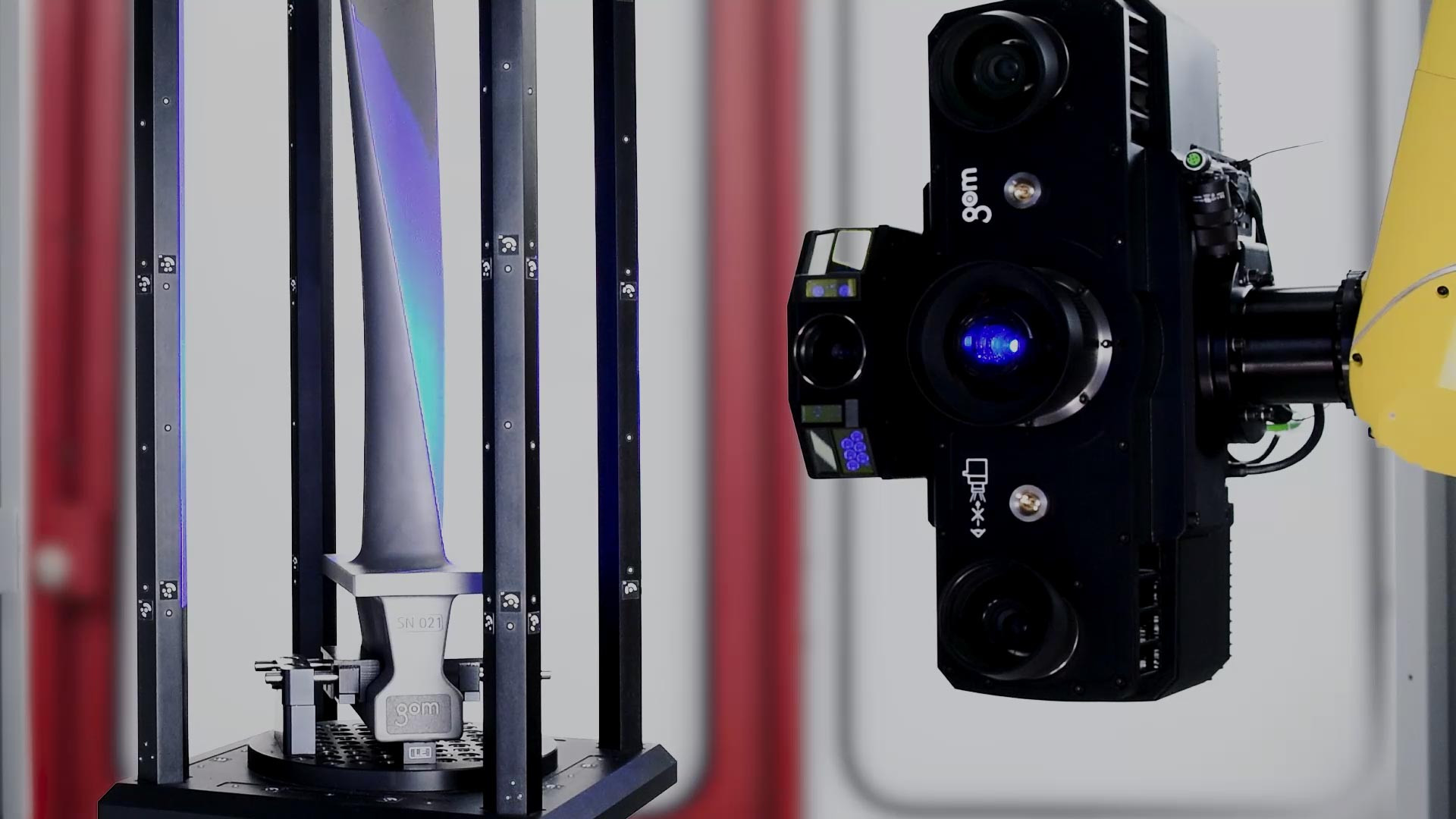

The ATOS series of industrial optical 3D scanners provide accurate scans with detailed resolution at high speeds. ATOS delivers three-dimensional measurement data and analysis for industrial components such as sheet metal parts, tools and dies, turbine blades, prototypes, injection moulded parts, castings, and more. Instead of measuring single points or with a laser, ATOS captures an object's full surface geometry and primitives in a dense point cloud or polygon mesh.
ATOS ScanBox - Optical 3D measuring machine
The fully automated ATOS ScanBox is a complete optical 3D measuring machine that was developed by GOM for efficient quality control in the production and manufacturing process. Nine models are available for different applications and part sizes; from 80 x 60 x 60 mm³ to whole car bodies!
Where mechanical measuring machines capture data in a point-based or linear manner, optical 3D coordinate measuring systems provide full-field deviations of the 3D actual coordinates and the CAD data.
TRITOP - Optical 3D coordinate measuring machine
The portable TRITOP system measures coordinates of three-dimensional objects quickly and precisely, with the capacity to be tailored for any feature of interest. Measuring tasks that traditionally were performed by tactile 3D coordinate measuring machines can now easily be carried out with the TRITOP system, negating the need for any complex, heavy or maintenance-intensive hardware.
PONTOS Live is GOM’s tracking system for positioning components for precise alignment or for the adjustment of fixtures. Combined with the GOM Touch Probe, PONTOS Live (based on the triangulation principle) allows the inspection of optically difficult to reach areas, regardless of material or component size.
ARAMIS - 3D motion and deformation sensor
ARAMIS is a non-contact and material-independent measuring system based on digital image correlation. Recognising that during sheet metal forming material choice and tool optimisation is a decisive factor for competitiveness in the automotive industry, GOM has developed a stable solution for full-field and point-based analysis of test objects.
ARGUS - Optical Forming Analysis
ARGUS supports the 3D analysis of components’ surface coordinates, major and minor strain, thickness reduction, and more. It is a proven tool for evaluating formed components and it is uniquely possible to measure complex sheet metal parts with a high scanning density.
GOM Education Packages
GOM offers comprehensive education packages for theory and practice lessons at vocational schools and universities. While the “ATOS for Education” package is intended for 3D scanning and inspection applications, “ARAMIS for Education” is used in materials and components testing. Besides the industrial hardware and software, the GOM education packages also contain structured laboratory tests and detailed lecture material.
